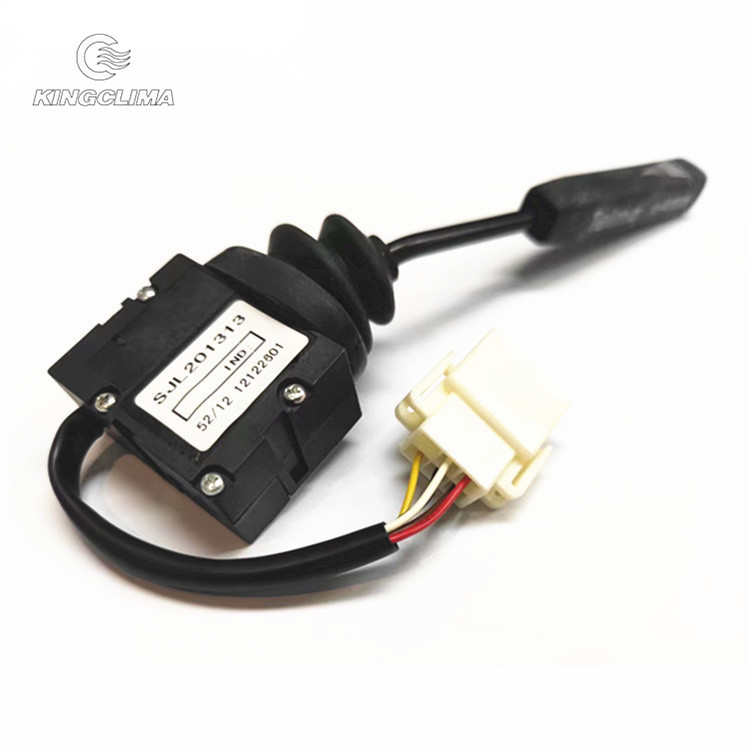

Current Vortex Retarder SJL201313 Hand Lever Switch

The retarder handle switch is installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.
The manual switch is divided into 5 gears, 0 means the retarder is closed, 1 means the retarder constant speed gear, 2 means 1/4 of the maximum retarding torque, 3 means 1/2 of the maximum retarding torque , 4th gear represents 3/4 of the maximum retarding torque, and 5th gear represents the maximum retarding torque.

B5-19 and TB-17 stator assembly is for electromagnetic retarder brake. The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The main function of the stator is to generate a rotating magnetic field, while the main function of the rotor is to be wire-cut in the rotating magnetic field to generate a current.

The diameter of this TR10 gearbox flange is 180mm, the height is 111mm, and the flange screw is M12. Our retarder flanges are specifically engineered to optimize braking power. By providing additional braking force, they help reduce vehicle speed effectively, even in demanding conditions.
Crafted from high-quality materials, our retarder flanges are built to withstand extreme temperatures, heavy loads, and continuous usage. Count on their durability and reliability to deliver consistent performance over an extended period.

The handle switch is divided into 5 gears, 0 means the retarder is closed, 1 means the retarder constant speed gear, 2 means 1/4 of the maximum retarding torque, 3 means 1/2 of the maximum retarding torque, The 4th gear represents 3/4 of the maximum retarding torque, and the 5th gear represents the maximum retarding torque.
When the car is ignited, the retarder is in a standby state. When the car needs to be slowed down, the purpose of slowing down can be achieved by turning the handle of the manual switch to the required gear step by step. If you want to turn off the slowing down function, just use the handle Turn the control switch handle back to 0 gear.

The TM series eddy current retarder suitable for all kinds of vehicles with long drive shafts, installed between two drive shafts; TM series includes six models. The use of intermediate bearing structure has almost no impact on the vehicle chassis; Equipped with imported bearings and high temperature resistant grease, long service life; Adopt the best structural scheme, the gap adjustment is simple, and the maintenance is convenient; High electric power, low power consumption; The braking torque is large, the torque range is wide, and the maximum braking force is from 500-3500NM; Suitable for all kinds of medium and heavy passenger, trucks and special vehicles with long drive shafts; Adopting digital and intelligent control system, it is safer to use and more reliable for all work.

Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

Retarder parts SZZ52017 double gear relay with switch is exclusive for Yutong. Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

DHB series retarder stator is made of aerospace die-cast aluminum alloy, which is anti-magnetization, high strength, light weight and good size stability.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The main function of the stator is to generate a rotating magnetic field, while the main function of the rotor is to be wire-cut in the rotating magnetic field to generate a current.

The DHZ series eddy current retarder assembly suitable for vehicles with front engine and installed in the middle of two drive shafts. DHZ series consists of 11 models. The dual-rotor intermediate bearing support structure is adopted, which is convenient to install and has little impact on the original vehicle transmission system. Imported bearings and high temperature resistant grease are used to ensure the safe and reliable operation of the retarder. It can be used as a chassis dynamometer and a controllable load.

The manual switch is divided into 5 gears, 0 means the retarder is closed, 1 means the retarder constant speed gear, 2 means 1/4 of the maximum retarding torque, 3 means 1/2 of the maximum retarding torque , 4th gear represents 3/4 of the maximum retarding torque, and 5th gear represents the maximum retarding torque.
The retarder handle switch is installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.

SZZ52014 two gears relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

Retarder intelligent control system adopts microcomputer core control of high automation and intelligence degree to adapt to a variety of harsh working environment with long service life.

Product introduction:
Break the traditional relay switch control mode, using non-contact intelligent module control;
Long service life, the number of work can reach more than 15 million times;
Microcomputer core control, high degree of automation and intelligence;
Strong self-protection function. With functions in various aspects, such as over-temperature, over-current, over-voltage and other automatic protection, and brake dragging, open circuit, short circuit detection and alarm;
Can be connected with the ABS system and brake light system of the original vehicle;
Adapt to harsh environments, high reliability. Adapt to environments at the temperature of -40°C ~ 105° C, with waterproof and salt spray corrosion resistance, and vibration resistance performance;
Conducted a rigorous electromagnetic compatibility design, passed the EU directive AUTOMOTIVE EMC certification;
CAN bus based on SAE J1939 protocol, distributed, modular design.

The retarder handle switch is installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.
When the car is ignited, the retarder is in a standby state. When the car needs to be slowed down, the purpose of slowing down can be achieved by turning the handle of the manual switch to the required gear step by step. If you want to turn off the slowing down function, just use the handle Turn the control switch handle back to 0 gear.

The diameter of this TERCA retarder ring flange is 95mm, the thickness is 22.5mm, there are 8 holes, and the drive shaft screws are M16.
Investing in our retarder flanges is a cost-effective solution to improve braking performance. By reducing wear and tear on standard brake systems, our flanges can extend their lifespan and minimize maintenance costs, ultimately saving you time and money.

The brand name of F191 and 71-95 brake retarder stator assembly is TELMA. The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame. The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The contact assembly of the static and dynamic contacts of the relay includes a static contact piece, a moving contact piece, a moving reed piece, a push card, two static contacts and two moving contacts. The dynamic and static contact structure improves the current breaking performance and prolongs the electrical life.
Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.

B5-15 retarder stator assembly frame is evenly equipped with 8 stator magnetic cores, and the stator magnetic cores are wound with coils.
The retarder stator coil assembly has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The stator bracket is used to support the stator. During the operation of the retarder, the bracket of the stator bracket can prevent the stator from shaking.
Eddy current retarder is generally composed of stator, rotor and fixed bracket. The diameter and weight of the single stator bracket are much smaller than that of the assembled stator.The stator includes a stator bracket and an iron core and coil, which are secured by the bracket. The stator bracket is an indispensable part of retarder.

The stator bracket is used to support the stator. During the operation of the retarder, the bracket of the stator bracket can prevent the stator from shaking.
Eddy current retarder is generally composed of stator, rotor and fixed bracket. The diameter and weight of the single stator bracket are much smaller than that of the assembled stator.The stator includes a stator bracket and an iron core and coil, which are secured by the bracket. The stator bracket is an indispensable part of retarder.

The DX1700 retarder stator coil assembly is part of the TELMA retarder fitting. The retarder stator coil assembly has several groups of internal coils, which are the main working parts of retarder. A part of an electric motor or generator that is fixed to the housing in response to the rotating part. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The main function of the stator is to generate a rotating magnetic field, while the main function of the rotor is to be wire-cut in the rotating magnetic field to generate a current.

It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.
SZZ52006 two gears relay box is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.

TELMA brand DX series eddy current retarder installed in the gearbox or rear axle. There are seven models.

Product Introduction：
1. Lightweight and miniaturized dual-rotor design, light weight, low moment of inertia, small dynamic load, and no impact on the transmission system;
2. Stable torque output performance;
3. Diversified matching and wide application;
4. The structure size is small, and the dual-rotor retarder is used to solve the problem of the layout of the drive shaft of the small and medium-sized vehicle;
5. The rotor is made of alloy steel casting;
6. The coil adopts special heat shrinkable material;
7. The stator tray is die-casted with high-density aluminum alloy material that is abundant in South America.

This TERCA flange is used to match the 153 rear axle. The black one has a diameter of 166mm and a thickness of 34mm. The white one is 175mm in diameter and 28mm thick.
Crafted from high-quality materials, our retarder flanges are built to withstand extreme temperatures, heavy loads, and continuous usage. Count on their durability and reliability to deliver consistent performance over an extended period.

The air pressure switch is a simple pressure control device. When the measured pressure reaches the rated value, the electronic pressure switch can send out a control signal. When the measured pressure exceeds the rated value, the free end of the elastic element produces a displacement to directly push the switch element, changing the on-off state of the switch element to achieve the purpose of control.
Mounted on the frame with the valve seat. It is connected with the front brake air path through the three-way and the air pipe, which is the control switch when the brake pedal is used to operate the retarder. Under the action of brake pressure, the pressure switch is switched on successively to control the action of the relay box.

The diameter of this CAMA current vortex retarder flange for end face is 182mm, there are 8 holes, the flange screws are M16, and the drive shaft screws are M14.
Crafted from high-quality materials, our retarder flanges are built to withstand extreme temperatures, heavy loads, and continuous usage. Count on their durability and reliability to deliver consistent performance over an extended period.

As technology continues to advance, modern eddy current retarder controllers incorporate sophisticated features such as intelligent control algorithms, integrated sensors, and communication interfaces.
One key advantage of eddy current retarder controllers is their ability to offer progressive and smooth braking. Unlike traditional braking systems that can cause abrupt stops, eddy current retarders provide gradual deceleration, minimizing wear on brake components and increasing overall safety.
In conclusion, eddy current retarder controllers are integral components in the realm of braking systems, offering efficient and reliable deceleration for heavy-duty vehicles. With their electromagnetic principles and advanced control capabilities, these controllers pave the way for improved safety, reduced maintenance, and optimized braking performance.

The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The stator frame is evenly equipped with 8 stator core, the stator core is wound with a coil, the stator frame is evenly opened with 8 core holes, the stator core is inserted in the hole and fixed on the stator frame, the two side segments of the extended core hole of the stator core are symmetrically distributed on both sides of the stator frame; Both ends of each stator core are fixedly connected with magnetic conductive plates.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The rotor refers to the main rotating part of the retarder.
It is composed of symmetrical front and back turntables, which are fixed as a whole through flange or connecting ring in the middle. High speed rotation with the drive shaft. The use of special material — 12 Cr molybdenum-vanadium (trace element) + iron = high temperature resistance (retarder high temperature can produce more than 500 degrees of heat, the whole rotor red, easy to deformation, if add 12 Cr molybdenum-vanadium, will not be deformed).
The rotor is called armature core, and armature winding is installed on it. It generates induced electromotive force after being energized and acts as a rotating magnetic field to generate electromagnetic torque for energy conversion.

TB series eddy current retarder contains 9 models in total. Suitable for installation in various gearboxes or rear axles; Compact structure and light weight; High electric power, low power consumption; The turntable made of special materials has small thermal deformation and low thermal decay of braking torque; Large braking torque, wide torque range, suitable for all kinds of large and medium-sized passenger cars, trucks and special vehicles; Adopt digital and intelligent controller, safer to use and more reliable to work; The blade has undergone technical reforms, which not only maintains a better heat dissipation capacity, but also greatly reduces the drag coefficient.

The diameter of this flange is 162.5mm, the flange screw is M12, and the drive shaft screw is M16.
Whether you operate a fleet of commercial trucks, heavy machinery, or specialized vehicles, our retarder flanges are engineered to optimize your braking system’s efficiency. Experience the difference in braking performance and safety with our high-quality retarder flanges.
