Super1000 Diesel Powered Unit

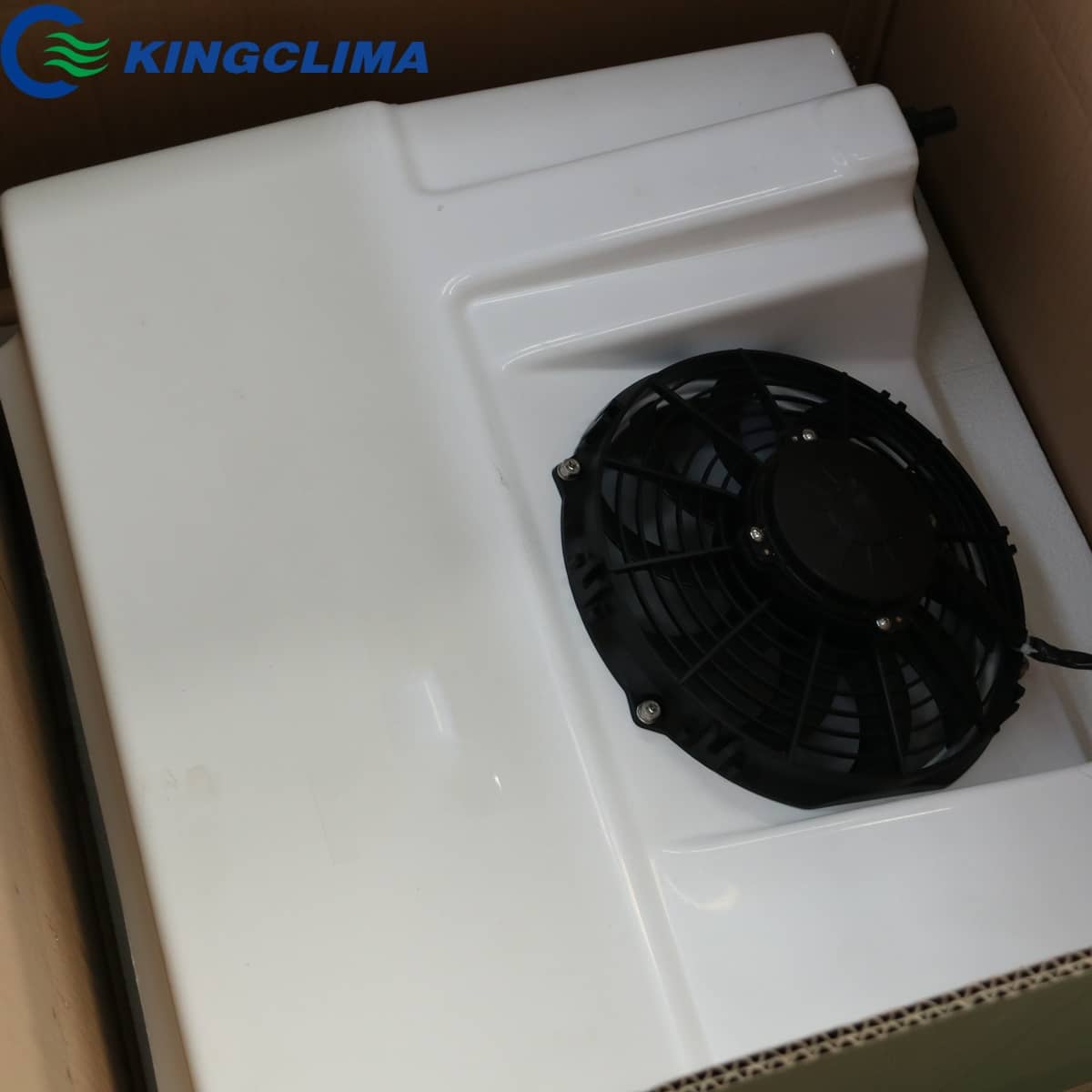

Brief Introduction of K-260C Small Truck Reefer Units :

KingClima K-260C Truck chiller units have front mounting and rooftop mounting, driven by vehicle engine and apply for 6-11 m³ Truck body box.

K-260C small truck reefer unit is designed for small truck box for fresh cool products express.

KingClima K-260C Truck Refrigeration System Optional Functions :

● AC220V/1Ph/50Hz or AC380V/3Ph/50Hz
● Optional electric standby system AC 220V/380V

KingClima Engine Driven Front-Mounted Monoblock Transport Refrigeration Units are designed compact that are one-piece condenser and evaporator units for the cold chain logistics. They can be installed safely and reliably on the Heavy/medium/light refrigeration transportation vehicles. High Quality, High Reliability, Small Size, Cooling Fast. Product Models : MOB 580 & MOB 600 Monoblock Truck Units.

K-2000 is truck trailer refrigeration units back wall mounted type for long distance temperatured controlled transport.
Model : K-2000
Operating Voltage : DC12V
Evaporator Housing Dimensions : 1685×1150×204mm
Application : 40ft trailer body

KingClima K-860 Truck refrigeration units is driven by vehicle engine and apply for big trucks with 40~50m³Truck body box to keep temperature range from -20℃ to +30℃. It is installed front mounting into the big truck boxes. The truck freezer units can keep fresh or frozen for different fresh fruits, milk ,ice cream ,vegetables, meat, dairy products, seafoods and so on..

KingClima K2000 Semi-Trailer Refrigeration Unit is a Self-Powered Refrigeration Unit for Trailer, it is suitable to transport sensitive cargoes, such as ice cream, frozen or fresh meat, dairy milk, seafood, medical pharmaceutical products and so on. We offer a line of Transport Refrigeration Units to meet the requirements of today’s competitive markets.

Front mounted unit K-460 truck refrigeration unit also called truck frozen unit, directly driven by vehicle engine, with 3980W cooling capacity at 0℃, mainly used for transport fresh or frozen goods in 4.0~4.5m refrigerated truck box, application on the box size of 15~20m³, temperature range from -18℃ to +15℃. Even if the unit at the high temperature environment or open door constantly, refrigeration unit still have a high performance.

Front mounted unit K-560 truck refrigeration unit also called truck frozen unit, directly driven by vehicle engine, mainly used for transport fresh or frozen goods in 5.2m refrigerated truck box, application on the box size of 18~25m temperature range from-18℃ to +15℃.

KingClima offer all kinds of box truck reefer units for reefer trucks direct sale to OEM or aftermarket customers. K-460 Box Truck Reefer Unit is in split structure and driven by the vehicle engine. It is especially designed for the medium or big trucks with 18~25m³ volume size.

KingClima T-560 Box Truck Refrigeration Unit was designed for with 16-20m³ size truck boxes to transport temperature-sensitive products. The temperature range is from -18℃ to 25℃ for deep frozen, frozen or chilled fresh delivery. Any needs just please send mails to us.

K-660 is for larger refrigerated truck box and KingClima directly sell our truck refrigeration units to customers with whole service.

– One-piece condenser and evaporator compact design, increase loading efficiency by 15%-20%;

– Evaporator is not in the compartment for high space utilization;

Sanden sd7h15 compressor is one of the truck refrigeration units use, we also have TM and QP and TK series compressor.

B-260 is designed for 4-7m³ van box for the lowest temperature controlled at -18℃, which can meet most of demands of perishable cargoes delivery. It adopts 1 set of Highly electric compressors to have a better cooling performance.
Model: B-260
Voltage: DC48V
Compressor Brand: Highly Compressor, VDD145S
Refrigerant: R404a

TM21 Compressor for cooling and Refrigeration Compressor .

K-260C Small Truck Reefer Unit is designed for small truck box fresh cool products express.

Kingclima supply highly 48v electric compressor for refrigeration unit.

K-660S Electric Standby Units
K-660S is integrated backup power operated truck refrigeration solution for 35~45 m³ truck box.
Model : K-660S
Airflow Volume : 3350m³/h
Recommend Box Volume : 35~45m³
Temp. range : -20℃~+30℃

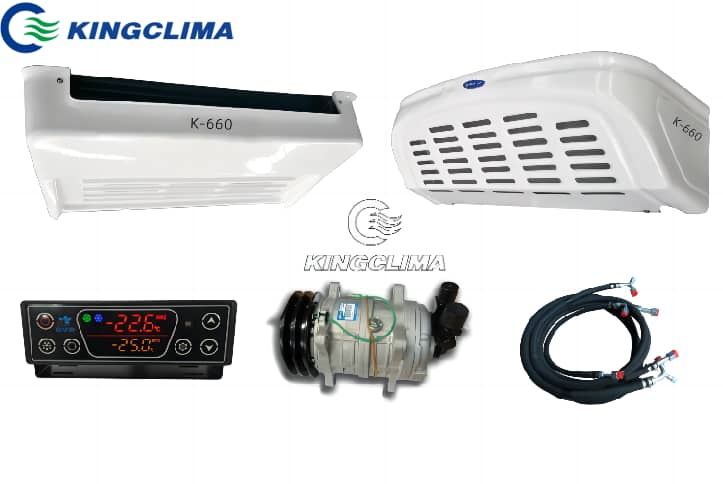

K-660 is for larger refrigerated truck box with 20~25m³size to make temperature controlled from -18℃ to +25℃. For KingClima industry, we directly sell our truck refrigeration units to customers with whole service.KingClima K-660 Truck Refrigeration System Optional Functions: AC220V/1Ph/50Hz or AC380V/3Ph/50Hz , optional electric standby system AC 220V/380V.

Super800 is a Self-powered combined diesel engine driven semi-trailer refrigeration unit , it is suitable to transport sensitive cargoes, such as ice cream, frozen or fresh meat, dairy milk,sea food,medical pharmaceutical products and so on. The Super800diesel engine powered truck refrigeration system is applied for 25~35m³ truck bodies.

Features of K-660 Freezer Unit for Truck.Multi-function controller with microprocessor control system of truck reefer units.The units with CPR valve will better protect compressors, especially in extremely hot or cold place.Adopt Eco-friendly refrigerant: R404a.The Hot gas defrosting system with Auto and manual is available for your choices. Rooftop mounted unit and slim evaporator design.

Super 1000 is DC12V self-powered diesel engine drive unit with electric standby AC220V/380V ,it can be used for refrigerated truck body box with 35-55m³.We use high quality parts such as Perkins engine ,Bock FK40 compressor ,spal fans with big cooling capacity especially in hot temperature area .

K-360S Van/truck engine driven Refrigeration Units with Electric Standby is front mounted and used for 11-16 cubic meter of Van or truck cargo box to be -20℃ to +15℃ .The cooling units still continue to work through connecting into supply power AC220V-240V when your van or truck stops.
Customers don’t need to install the standby system under the truck chassis, so it make the whole truck refrigeration units beautiful, compact and concise, it can decrease the wire installation.
