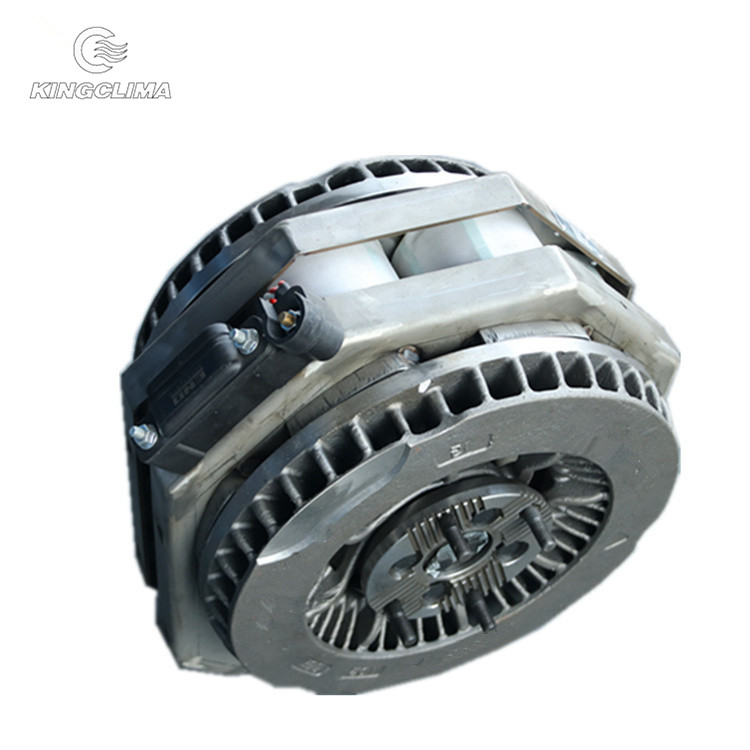

TELMA brand AX5 Series Eddy Current Retarder Assembly

The control unit of an eddy current retarder is a vital component responsible for managing and regulating the operation of the retarder system. Eddy current retarders are braking systems commonly used in heavy-duty vehicles to provide efficient and reliable braking force.
The control unit acts as the central intelligence of the eddy current retarder system, interpreting sensor inputs, processing signals, and regulating the braking force to ensure smooth and efficient operation. Its functionality is crucial in providing effective braking performance, enhancing vehicle safety, and optimizing overall vehicle dynamics.We are now ready to start production.

Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

The diameter of this TERCA Two-in-one retarder flange for end face is 162mm, the thickness is 25mm, the flange screws are M14, and the drive shaft screws are M12.
Whether you operate a fleet of commercial trucks, heavy machinery, or specialized vehicles, our retarder flanges are engineered to optimize your braking system’s efficiency. Experience the difference in braking performance and safety with our high-quality retarder flanges.

This TERCA flange is used to match the 153 rear axle. The black one has a diameter of 166mm and a thickness of 34mm. The white one is 175mm in diameter and 28mm thick.
Crafted from high-quality materials, our retarder flanges are built to withstand extreme temperatures, heavy loads, and continuous usage. Count on their durability and reliability to deliver consistent performance over an extended period.

As technology continues to advance, modern eddy current retarder controllers incorporate sophisticated features such as intelligent control algorithms, integrated sensors, and communication interfaces.
One key advantage of eddy current retarder controllers is their ability to offer progressive and smooth braking. Unlike traditional braking systems that can cause abrupt stops, eddy current retarders provide gradual deceleration, minimizing wear on brake components and increasing overall safety.
In conclusion, eddy current retarder controllers are integral components in the realm of braking systems, offering efficient and reliable deceleration for heavy-duty vehicles. With their electromagnetic principles and advanced control capabilities, these controllers pave the way for improved safety, reduced maintenance, and optimized braking performance.

The stator bracket is used to support the stator. During the operation of the retarder, the bracket of the stator bracket can prevent the stator from shaking.
Eddy current retarder is generally composed of stator, rotor and fixed bracket. The diameter and weight of the single stator bracket are much smaller than that of the assembled stator.The stator includes a stator bracket and an iron core and coil, which are secured by the bracket. The stator bracket is an indispensable part of retarder.

The control unit of an eddy current retarder is a vital component responsible for managing and regulating the operation of the retarder system. Eddy current retarders are braking systems commonly used in heavy-duty vehicles to provide efficient and reliable braking force.
The control unit acts as the central intelligence of the eddy current retarder system, interpreting sensor inputs, processing signals, and regulating the braking force to ensure smooth and efficient operation. Its functionality is crucial in providing effective braking performance, enhancing vehicle safety, and optimizing overall vehicle dynamics.

The eddy current retarder two pillars wiring board is a critical component within the eddy current retarder system, specifically designed to facilitate the electrical connections and functionality of the system. This wiring board plays a crucial role in ensuring proper communication and power distribution between various components of the eddy current retarder.
Wiring board is a type of socket. It is a porous socket formed by placing multiple sockets together. Simply speaking, a wiring board socket is a porous socket with a power cord and plug and can be moved. It is a common name of a power converter. A wiring board socket can be used for multiple purposes, saving space, saving lines, simple and practical.

TB series eddy current retarder contains 9 models in total. Suitable for installation in various gearboxes or rear axles; Compact structure and light weight; High electric power, low power consumption; The turntable made of special materials has small thermal deformation and low thermal decay of braking torque; Large braking torque, wide torque range, suitable for all kinds of large and medium-sized passenger cars, trucks and special vehicles; Adopt digital and intelligent controller, safer to use and more reliable to work; The blade has undergone technical reforms, which not only maintains a better heat dissipation capacity, but also greatly reduces the drag coefficient.

It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.
SZZ52006 two gears relay box is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.

This retarder rotor is suitable for TELMA DX1700 and DX2400 eddy current retarders.
It is composed of symmetrical front and back turntables, which are fixed as a whole through flange or connecting ring in the middle. High speed rotation with the drive shaft. The use of special material — 12 Cr molybdenum-vanadium (trace element) + iron = high temperature resistance (retarder high temperature can produce more than 500 degrees of heat, the whole rotor red, easy to deformation, if add 12 Cr molybdenum-vanadium, will not be deformed).
The rotor is called armature core, and armature winding is installed on it. It generates induced electromotive force after being energized and acts as a rotating magnetic field to generate electromagnetic torque for energy conversion.

Active stock TELMA brand F series bus electromagnetic brake eddy current retarder installed in the gearbox or rear axle from KINGRETARDER.

Product Introduction：
1. The unique material technology rotor meets the durability test requirements;
2. The electronic control part of the high-performance of Telma retarder;
3. The whole process of computer numerical control processing technology;
4. The rotor is cast with alloy steel;
5. The coil adopts special heat shrinkable material;

A controller tester for eddy current retarders is a device used to evaluate the functionality and performance of the controllers used in eddy current retarder systems.
The purpose of the controller tester is to simulate various operating conditions and monitor the response of the controller. It helps in identifying any issues or malfunctions in the controller before it is installed in the actual retarder system. This testing ensures that the retarder operates effectively and safely in real-world scenarios.
By using a controller tester for eddy current retarders, manufacturers, maintenance personnel, and researchers can verify the reliability and effectiveness of the controller before its integration into the retarder system. This testing process contributes to improved safety, performance, and longevity of the eddy current retarder in various applications.

Mounted on the frame with the valve seat. It is connected with the front brake air path through the three-way and the air pipe, which is the control switch when the brake pedal is used to operate the retarder. Under the action of brake pressure, the pressure switch is switched on successively to control the action of the relay box.
The retarder pressure switch provided by our company has a variety of models, including 3P 5P 7P 10P, etc., with a rich variety.

With its advanced technology and precision engineering, the Eddy Current Retarder Terminal Board enables seamless integration of eddy current retarders into your existing systems. Its compact and efficient design ensures reliable and efficient power transmission, minimizing energy loss and maximizing overall system performance.
Experience the benefits of simplified wiring and enhanced control with our terminal board’s intuitive interface, allowing for easy installation and configuration. Say goodbye to complex wiring setups and hello to streamlined operations.

The retarder handle switch is installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.
The manual switch is divided into 5 gears, 0 means the retarder is closed, 1 means the retarder constant speed gear, 2 means 1/4 of the maximum retarding torque, 3 means 1/2 of the maximum retarding torque , 4th gear represents 3/4 of the maximum retarding torque, and 5th gear represents the maximum retarding torque.

The Electronic Controller of an eddy current retarder is a vital component that plays a key role in the operation and control of the retarder system. It is responsible for receiving input signals, processing them, and generating output signals to regulate the braking force applied by the retarder.
The Electronic Controller acts as the central control unit of the eddy current retarder system, processing sensor inputs, generating control signals, and regulating the braking force. Its functionality is crucial in providing precise and efficient control, ensuring safe braking performance, and optimizing the overall operation of the retarder system.

TELMA A series eddy current retarder suitable for all kinds of vehicles with long drive shafts. Installed in the middle of the drive shaft.

Product Introduction：
1. Lightweight, miniaturized dual-rotor design, light weight, low moment of inertia, small dynamic load, and no impact on the transmission system;
2. Stable torque output performance;
3. Diversified matching and wide application;
4. The structure size is small, and the dual-rotor retarder is used to solve the problem of the layout of the drive shaft of the small and medium-sized vehicle;
5. The rotor is made of alloy steel casting;
6.The coil adopts special heat shrinkable material.

Eddy current retarder controllers play a crucial role in the world of vehicle braking systems, offering enhanced control and efficiency. These advanced devices harness the power of eddy currents to provide reliable and effective braking performance.
Eddy current retarder controllers serve as the brains behind this intricate process. They regulate the strength of the magnetic field and control the amount of braking force applied. By adjusting the parameters of the controller, such as current intensity or frequency, the braking power can be finely tuned to suit various driving conditions and vehicle requirements.

The diameter of this TR10 gearbox flange is 180mm, the height is 111mm, and the flange screw is M12. Our retarder flanges are specifically engineered to optimize braking power. By providing additional braking force, they help reduce vehicle speed effectively, even in demanding conditions.
Crafted from high-quality materials, our retarder flanges are built to withstand extreme temperatures, heavy loads, and continuous usage. Count on their durability and reliability to deliver consistent performance over an extended period.

The diameter of this 043 flange is 182mm, the flange screw is M16, and the drive shaft screw is M14.
Investing in our retarder flanges is a cost-effective solution to improve braking performance. By reducing wear and tear on standard brake systems, our flanges can extend their lifespan and minimize maintenance costs, ultimately saving you time and money.

The eddy current retarder relay block is a critical component within the realm of automotive engineering, specifically in vehicles equipped with eddy current retarder systems. This relay block serves as the central control unit, facilitating the efficient operation and coordination of the various components involved in the eddy current retarder system.
This relay block effectively controls the engagement and disengagement of the eddy current retarder, allowing seamless integration with the vehicle’s overall braking and acceleration systems. It ensures optimal performance, smooth operation, and enhanced safety by monitoring parameters such as vehicle speed, engine RPM, and temperature.

Main power switch assembly generally is installed in the battery compartment, connected to the battery positive terminal and eddy current retarder controller between. It is the main switch to control the eddy current retarder. When not in use for a long time, the main power switch of the eddy current retarder needs to be turned off.
The main function of the switching power supply is to cut high energy into countless low energies, and then transmit it to the output terminal, and the output terminal will also feedback the input terminal through the level of the output voltage. In this way, a stable output voltage can be achieved Effect.

The stator assembly is a kind of retarder parts. DX1300 TELMA retarder parts stator assembly is suitable for Telma DX series eddy current retarder.
The stator assembly has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The contact assembly of the static and dynamic contacts of the relay includes a static contact piece, a moving contact piece, a moving reed piece, a push card, two static contacts and two moving contacts. The dynamic and static contact structure improves the current breaking performance and prolongs the electrical life.
Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.

The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The stator frame is evenly equipped with 8 stator core, the stator core is wound with a coil, the stator frame is evenly opened with 8 core holes, the stator core is inserted in the hole and fixed on the stator frame, the two side segments of the extended core hole of the stator core are symmetrically distributed on both sides of the stator frame; Both ends of each stator core are fixedly connected with magnetic conductive plates.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

DX1500 retarder stator coil assembly is suitable for TELMA DX series eddy current retarder.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The main function of the stator is to generate a rotating magnetic field, while the main function of the rotor is to be wire-cut in the rotating magnetic field to generate a current.

DHB-15A stator coil assembly is suitable for CAMA DHB series eddy current retarder. CAMA DHB series eddy current retarder suitable for long-distance and tourist buses with rear gearboxes.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The retarder handle switch is installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.
When the car is ignited, the retarder is in a standby state. When the car needs to be slowed down, the purpose of slowing down can be achieved by turning the handle of the manual switch to the required gear step by step. If you want to turn off the slowing down function, just use the handle Turn the control switch handle back to 0 gear.

Retarder intelligent control system adopts microcomputer core control of high automation and intelligence degree to adapt to a variety of harsh working environment with long service life.

Product introduction:
Break the traditional relay switch control mode, using non-contact intelligent module control;
Long service life, the number of work can reach more than 15 million times;
Microcomputer core control, high degree of automation and intelligence;
Strong self-protection function. With functions in various aspects, such as over-temperature, over-current, over-voltage and other automatic protection, and brake dragging, open circuit, short circuit detection and alarm;
Can be connected with the ABS system and brake light system of the original vehicle;
Adapt to harsh environments, high reliability. Adapt to environments at the temperature of -40°C ~ 105° C, with waterproof and salt spray corrosion resistance, and vibration resistance performance;
Conducted a rigorous electromagnetic compatibility design, passed the EU directive AUTOMOTIVE EMC certification;
CAN bus based on SAE J1939 protocol, distributed, modular design.
