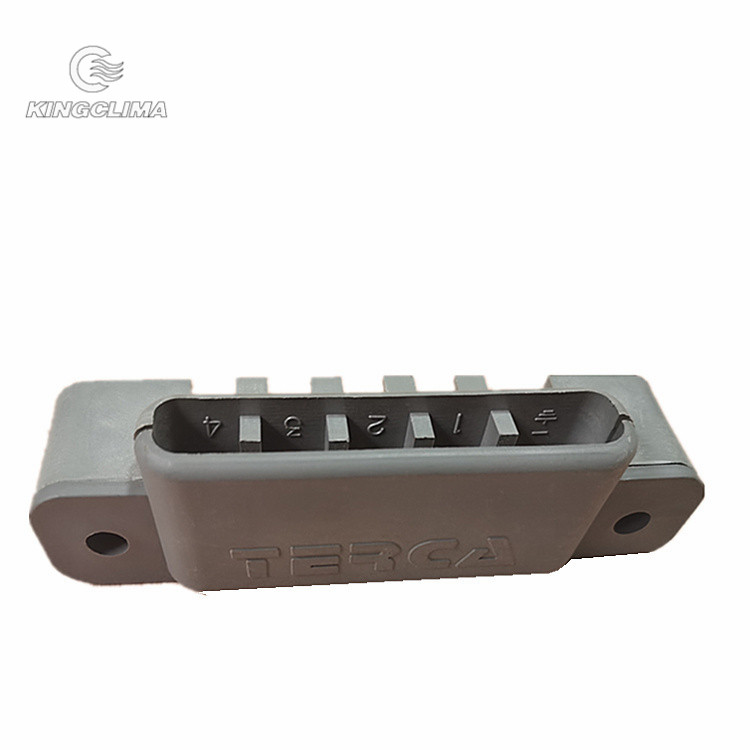

TERCA Retarder B Series Five Pillars 0.2KGS Wiring Board

The control unit of an eddy current retarder is a vital component responsible for managing and regulating the operation of the retarder system. Eddy current retarders are braking systems commonly used in heavy-duty vehicles to provide efficient and reliable braking force.
The control unit acts as the central intelligence of the eddy current retarder system, interpreting sensor inputs, processing signals, and regulating the braking force to ensure smooth and efficient operation. Its functionality is crucial in providing effective braking performance, enhancing vehicle safety, and optimizing overall vehicle dynamics.

The diameter of this 043 flange for end face is 182mm, the flange screw is M16, and the drive shaft screw is M14.
We understand that different vehicles and applications have unique requirements. That’s why we offer customizable options, allowing you to select the retarder flange that best suits your specific needs. From size and shape to material composition, we can tailor our product to match your exact specifications.

TELMA brand DX series eddy current retarder installed in the gearbox or rear axle. There are seven models.

Product Introduction：
1. Lightweight and miniaturized dual-rotor design, light weight, low moment of inertia, small dynamic load, and no impact on the transmission system;
2. Stable torque output performance;
3. Diversified matching and wide application;
4. The structure size is small, and the dual-rotor retarder is used to solve the problem of the layout of the drive shaft of the small and medium-sized vehicle;
5. The rotor is made of alloy steel casting;
6. The coil adopts special heat shrinkable material;
7. The stator tray is die-casted with high-density aluminum alloy material that is abundant in South America.

The TR series includes 4 models. Compact structure, light weight, small size, easy to disassemble and assemble; The rotor adopts a cylindrical structure, a fully machined surface, and a beautiful appearance; Low power consumption, no need to replace the original car generator; The braking torque is large, 100-300NM larger than other similar structure eddy current retarders, and the maximum braking torque can be reached at low speed (vehicle speed is about 15km/h); Radial distribution, so that the rotor gap is not affected by the bearing movement, making the eddy current retarder run more reliable and more widely matched; The axial length is small, the weight of the rotor is light (about 20kg), and the impact on the original vehicle’s transmission system is small; The installation space required is small, especially suitable for medium-sized vehicles with short rear suspension and unable to shorten the drive shaft; Adopt digital and intelligent control system, safer work and more reliable operation.

Mounted on the frame with the valve seat. It is connected with the front brake air path through the three-way and the air pipe, which is the control switch when the brake pedal is used to operate the retarder. Under the action of brake pressure, the pressure switch is switched on successively to control the action of the relay box.
The retarder pressure switch provided by our company has a variety of models, including 3P 5P 7P 10P, etc., with a rich variety.

Retarder intelligent control system adopts microcomputer core control of high automation and intelligence degree to adapt to a variety of harsh working environment with long service life.

Product introduction:
Break the traditional relay switch control mode, using non-contact intelligent module control;
Long service life, the number of work can reach more than 15 million times;
Microcomputer core control, high degree of automation and intelligence;
Strong self-protection function. With functions in various aspects, such as over-temperature, over-current, over-voltage and other automatic protection, and brake dragging, open circuit, short circuit detection and alarm;
Can be connected with the ABS system and brake light system of the original vehicle;
Adapt to harsh environments, high reliability. Adapt to environments at the temperature of -40°C ~ 105° C, with waterproof and salt spray corrosion resistance, and vibration resistance performance;
Conducted a rigorous electromagnetic compatibility design, passed the EU directive AUTOMOTIVE EMC certification;
CAN bus based on SAE J1939 protocol, distributed, modular design.

Eddy current retarder indicator lights play a crucial role in the efficient operation of heavy-duty vehicles equipped with eddy current retarders.
The indicator lights associated with these retarders serve as essential visual cues for both the driver and maintenance personnel, providing important information about the functioning and status of the retarder system. These indicator lights are designed to communicate various conditions and warnings, such as the engagement and disengagement of the retarder, temperature levels, fault detection, and overall system health.

This TERCA flange is used to match the 153 rear axle. The black one has a diameter of 166mm and a thickness of 34mm. The white one is 175mm in diameter and 28mm thick.
Crafted from high-quality materials, our retarder flanges are built to withstand extreme temperatures, heavy loads, and continuous usage. Count on their durability and reliability to deliver consistent performance over an extended period.

The Control Unit monitors key parameters like temperature and system diagnostics to ensure the retarder operates within safe limits. It may also incorporate intelligent algorithms and control strategies to optimize the efficiency of the retarder system, maximizing energy recovery and minimizing wear.
In summary, the eddy current retarder Control Unit acts as the brain of the system, coordinating the operation of the retarder for precise and efficient braking. By intelligently controlling the retarder’s engagement and monitoring critical parameters, it enhances the vehicle’s braking capabilities and contributes to a safer and smoother driving experience.

TELMA FC71-40 eddy current retarder dedicated stator bracket is used to support the stator. During the operation of the retarder, the bracket of the stator bracket can prevent the stator from shaking.
Eddy current retarder is generally composed of stator, rotor and fixed bracket. The diameter and weight of the single stator bracket are much smaller than that of the assembled stator.The stator includes a stator bracket and an iron core and coil, which are secured by the bracket. The stator bracket is an indispensable part of retarder.

It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.
SZZ52006 two gears relay box is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.

The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
Eddy current retarder has been widely used in developed countries. At present, almost all large and medium-sized buses with higher level or above are equipped with eddy current retarder as standard or optional. Some trucks are also trying to install retarder.

As technology continues to advance, modern eddy current retarder controllers incorporate sophisticated features such as intelligent control algorithms, integrated sensors, and communication interfaces.
One key advantage of eddy current retarder controllers is their ability to offer progressive and smooth braking. Unlike traditional braking systems that can cause abrupt stops, eddy current retarders provide gradual deceleration, minimizing wear on brake components and increasing overall safety.
In conclusion, eddy current retarder controllers are integral components in the realm of braking systems, offering efficient and reliable deceleration for heavy-duty vehicles. With their electromagnetic principles and advanced control capabilities, these controllers pave the way for improved safety, reduced maintenance, and optimized braking performance.

The DHZ series eddy current retarder assembly suitable for vehicles with front engine and installed in the middle of two drive shafts. DHZ series consists of 11 models. The dual-rotor intermediate bearing support structure is adopted, which is convenient to install and has little impact on the original vehicle transmission system. Imported bearings and high temperature resistant grease are used to ensure the safe and reliable operation of the retarder. It can be used as a chassis dynamometer and a controllable load.

Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The stator frame is evenly equipped with 8 stator core, the stator core is wound with a coil, the stator frame is evenly opened with 8 core holes, the stator core is inserted in the hole and fixed on the stator frame, the two side segments of the extended core hole of the stator core are symmetrically distributed on both sides of the stator frame; Both ends of each stator core are fixedly connected with magnetic conductive plates.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

Relay Controller is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

TELMA A series eddy current retarder suitable for all kinds of vehicles with long drive shafts. Installed in the middle of the drive shaft.

Product Introduction：
1. Lightweight, miniaturized dual-rotor design, light weight, low moment of inertia, small dynamic load, and no impact on the transmission system;
2. Stable torque output performance;
3. Diversified matching and wide application;
4. The structure size is small, and the dual-rotor retarder is used to solve the problem of the layout of the drive shaft of the small and medium-sized vehicle;
5. The rotor is made of alloy steel casting;
6.The coil adopts special heat shrinkable material.

The diameter of this TERCA TB15-21 flange is 182mm, the thickness is 40mm, the flange screw is M16, and the drive shaft screw is M16.
Our retarder flanges are designed for easy installation, minimizing downtime and maximizing productivity. With clear instructions and compatibility with standard braking systems, integrating our flanges into your existing setup is a seamless process.

The DX1700 retarder stator coil assembly is part of the TELMA retarder fitting. The retarder stator coil assembly has several groups of internal coils, which are the main working parts of retarder. A part of an electric motor or generator that is fixed to the housing in response to the rotating part. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The main function of the stator is to generate a rotating magnetic field, while the main function of the rotor is to be wire-cut in the rotating magnetic field to generate a current.

AX5 Series Eddy Current Retarder Suitable for All Kinds of Vehicles with Long Drive Shafts. The AX5 series comes in two models, AX50-70 and AX51-00.

AX5 Series Product Introduction：
1. Lighter, smaller and better performance;
2. Uniquely designed rotor to enhance torque durability and reduce loss;
3. Optimized current design to reduce current loss;
4. More corrosion resistant;
5. Modular design, longer use time;
6. It is installed in the middle of the drive shaft and has wide applicability.

Telma 2800 stator is suitable for eddy current retarder. The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame. The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The AX8 series is divided into AX83-00 and AX83-40 models. AX8 series bus brake eddy current retarder suitable for all kinds of vehicles with long drive shafts.

Product Introduction：
1. Lighter, smaller and better performance;
2. Uniquely designed rotor to enhance torque durability and reduce loss;
3. Optimized current design to reduce current loss;
4. More corrosion resistant;
5. Modular design, longer use time;
6. It is installed in the middle of the drive shaft and has wide applicability.

The control unit of an eddy current retarder is a vital component responsible for managing and regulating the operation of the retarder system. Eddy current retarders are braking systems commonly used in heavy-duty vehicles to provide efficient and reliable braking force.
The control unit acts as the central intelligence of the eddy current retarder system, interpreting sensor inputs, processing signals, and regulating the braking force to ensure smooth and efficient operation. Its functionality is crucial in providing effective braking performance, enhancing vehicle safety, and optimizing overall vehicle dynamics.We are now ready to start production.

Eddy current retarder controllers play a crucial role in the world of vehicle braking systems, offering enhanced control and efficiency. These advanced devices harness the power of eddy currents to provide reliable and effective braking performance.
Eddy current retarder controllers serve as the brains behind this intricate process. They regulate the strength of the magnetic field and control the amount of braking force applied. By adjusting the parameters of the controller, such as current intensity or frequency, the braking power can be finely tuned to suit various driving conditions and vehicle requirements.

The manual switch is divided into 5 gears, 0 means the retarder is closed, 1 means the retarder constant speed gear, 2 means 1/4 of the maximum retarding torque, 3 means 1/2 of the maximum retarding torque , 4th gear represents 3/4 of the maximum retarding torque, and 5th gear represents the maximum retarding torque.
The retarder handle switch is installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.

Fast-selling modity FV61-30 bus brake retarder stator assembly suitable for TELMA eddy current retarder. The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The Electronic Controller of an eddy current retarder is a vital component that plays a key role in the operation and control of the retarder system. It is responsible for receiving input signals, processing them, and generating output signals to regulate the braking force applied by the retarder.
The Electronic Controller acts as the central control unit of the eddy current retarder system, processing sensor inputs, generating control signals, and regulating the braking force. Its functionality is crucial in providing precise and efficient control, ensuring safe braking performance, and optimizing the overall operation of the retarder system.

The handle switch is divided into 5 gears, 0 means the retarder is closed, 1 means the retarder constant speed gear, 2 means 1/4 of the maximum retarding torque, 3 means 1/2 of the maximum retarding torque, The 4th gear represents 3/4 of the maximum retarding torque, and the 5th gear represents the maximum retarding torque.
When the car is ignited, the retarder is in a standby state. When the car needs to be slowed down, the purpose of slowing down can be achieved by turning the handle of the manual switch to the required gear step by step. If you want to turn off the slowing down function, just use the handle Turn the control switch handle back to 0 gear.

The TM series eddy current retarder suitable for all kinds of vehicles with long drive shafts, installed between two drive shafts; TM series includes six models. The use of intermediate bearing structure has almost no impact on the vehicle chassis; Equipped with imported bearings and high temperature resistant grease, long service life; Adopt the best structural scheme, the gap adjustment is simple, and the maintenance is convenient; High electric power, low power consumption; The braking torque is large, the torque range is wide, and the maximum braking force is from 500-3500NM; Suitable for all kinds of medium and heavy passenger, trucks and special vehicles with long drive shafts; Adopting digital and intelligent control system, it is safer to use and more reliable for all work.
