V-200 Fuel Van Engine 12V Refrigeration units

MAX380 is a rooftop mounted engine-driven unit especially for van use.KingClima MAX series are high-quality split Non-Independent Transport Refrigeration Units, which were designed and manufactured by our company after combining the market demand. This series of refrigeration units are mainly for large, medium, and small refrigerated/frozen transport vehicles. Any needs just please contact us.

B-150 Van Refrigeration Units
It needs higher requirement on energy-saving, noise control when refrigeration unit in operating, and even higher protection for vehicle generator to ensure the restart all the time to adjust with much complicated city traffic condition.KingClima fresh and frozen solution for van transport refrigeration unit will meet your needs.
Model : B-150
Application : 2-6m³
Compressor : DC,25cc/r
Cooling Capacity : 950W(-18℃) , 2000W(0℃）

K-360RS Truck engine driven Refrigeration Units with Electric Standby is top mounted and used for 11-16 cubic meter of vehicle cargo box to be -20℃ to +15℃ .The cooling units still continue to work through electric standby connecting into local supply power AC220V-240V when the van or truck stops.
Customers don’t need to install the standby system under the truck chassis, so it make the refrigeration truck cooling units to be beautiful, compact and concise, it can decrease the wire installation.

V-200 van freezer units apply to all kinds of small and medium-sized refrigerated cargo vans with 5 -12m³ van box. The small van units are roof top mounted units for cargo vans to transport freezer goods.With R404a Eco-friendly refrigerant, the temperature can range from -18℃ ~ +15℃. Customers can choose kingthermo units for vans to equip with optional function: Heating system for different demands.

V-300 Van Engine driven Refrigeration units are Rooftop mounting and used for 6-11 m³ van cargo freezer box from -20℃to +15℃, To ensure transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products and seafood. And we also add the heating function especially used in cold temperature area.

V-300 van freezer units apply to small van and medium refrigerated cargo vans with 6-17m³ van body box.

V-300 Van Refrigeration Units are rooftop mounting, driven by vehicle engine and apply for 10-16 m³ van container box with two fans. Temperature range from -20℃ to +30℃.

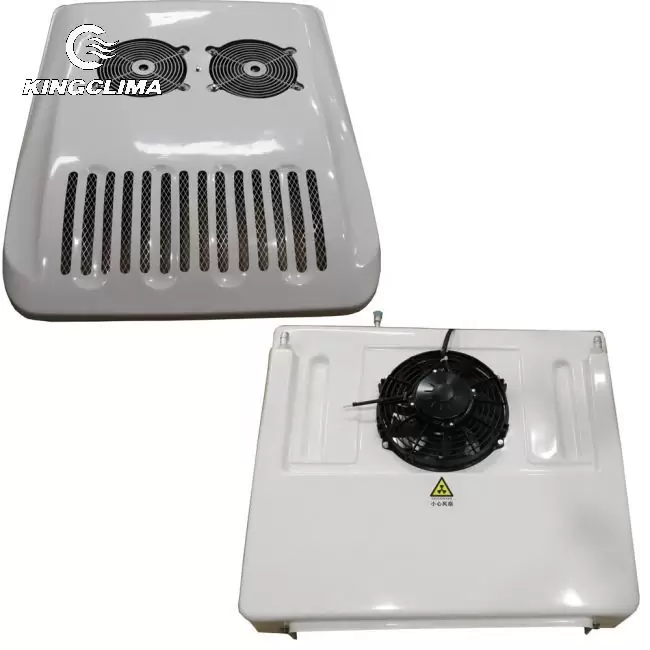

V-350 Ultrathin Van engine driven freezer units,The most main feature of V-350 van refrigeration units is its very thin height only with 120mm height, which can meet all of the city height limitation. It is rooftop mounted and used for 6-9 m³ van cargo box from -20℃ to +15℃ with chiller and freezer function,its big cooling capacity can be cool in the short time.

V-300 Van freezer refrigeration units are driven by fuel van engine and used for 10-16 m³ van cargo box with chiller and freezing function from -20℃ to +15℃. The voltage of V-300 is 12V/24V ,R404a and Automatic defrost function with big cooling capacity to be cool in the short time.

KingClima Engine Driven Van Refrigeration Units are for transporting fresh and frozen products with the temperature -18℃ ~ +30℃ to choose. Apply for 6-17m³ van body box.

It is only 120mm height of the van refrigeration units, -18℃ ~ +25℃ temperature controlled, ultral slim type for most of cargo vans with 6-9m³ van box.

It is only 120mm height of the van refrigeration units, -18℃ ~ +25℃ temperature controlled, ultral slim type for most of cargo vans with 6-9m³ van box.

B-150 B-150C Battery Powered Refrigeration Units are rooftop mounting, DC-powered 12V/24V/48V/72V/96V used for 3-6m³ reefer vans.The Battery Powered Refrigeration Units meet your demands on energy-saving, noise control and provide even higher protection for vehicle generators to ensure the restart all the time to adjust to much-complicated city traffic conditions. Any needs just please contact us.

V-350 Ultrathin Van Engine Driven Refrigeration Units ,the total height is 120mm ,it is rooftop mounting and apply for 6-9 m³ van cargo box from -20℃ to +15℃.The van reefer unis with chiller and freezing function for transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products and seafood…

B150 is a freezer can be used in van pickup and tricycles.As a freezer,B-150 cost less money in maintenance and less refrigerant for cooling.B150 can keep productions temp between -18℃~25℃。This decide the van carried B150 can transport meat fruit flower even ice-cream.
PS:B150 can cooling down the temp in 3~6m³ if your carrier have more space,please click our company’s home page there are a lot of freezers you can chose.

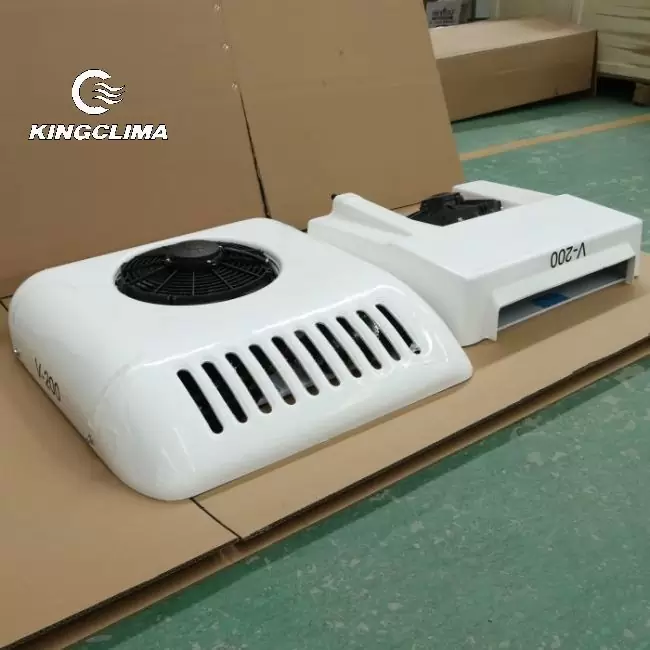

V-200 Van Refrigeration Units
KingClima V-200 Van Refrigeration Units are rooftop mounting, driven by vehicle engine and apply for 5 -12 m³ van container box.
Model : V-200
Cooling Capacity： 2000W(0℃）1110W（-18℃）
Application : 5 -12m³
Compressor : DY5H11 / 108cc/r

KingClima V-300C Van Refrigeration Unit apply to small van or medium refrigerated cargo vans with 6-17m³ van body box.
Model : V-300C
Cooling Capacity : 3020W（0℃/32℉）
Application : 8 -16 m³
Compressor : SD5S14(138CC/r) /QP15

B-150 Battery Van Refrigeration is full electric refrigeration unit, and there are DC12V-DC72V to choose. It is rooftop mounted unit with slim evaporator design. This picture taken by our customer and it showed the inside part. And it works perfectly on 3-6m³ can body box.

V-300 Van Refrigeration Units
V-300 van freezer units apply to small van and medium refrigerated cargo vans with 6-17m³ van body box.
Model : V-300
Cooling Capacity : 3005W
Application : 15m³
Compressor : DY5H14 / 138cc/r

V300 diesel refrigeration units are lighter than electric refrigeration, which means you can carry more goods in one transport, and it also has great cooling ability when opening the temp can be controlled between -18℃~25℃。 You can use it to transport meat flowers seafood even ice cream.
PS: V300 is only applicable in bx volume between 10m³~15m³ if you want refrigeration to apply another box volume please click our room page. There are kinds of refrigeration you can choose.

KingClima can provide the Transport Refrigeration Units for all kinds of Van Use. Such as Mercedes(Benz) hiace sprinter , electric Nissan e-NV 200, Nissan Master, Nissan Primaster, Renault Master Electric L2H2, Ford TRANSIT , Ford F-series, Chevrolet , Doage Ram, Toyota , Honda CR-V and so on . Some customers refit their cargo vans by installing the refrigeration units to deliver fresh or frozen goods, such as caterer, baker, grocery, flower delivery business and so on . We believe Our Engine Van Refrigeration Units can help your business works perfectly .

V-200 van freezer units apply to all kinds of small and medium-sized refrigerated cargo vans with 5 -12m³ van box. The small van units are roof top mounted units for cargo vans to transport freezer goods.
