V-300/300C Van Refrigeration Unit

B-350 battery driven cooling units is rooftop mounting and used for electric van refrigeration units with high voltage or low voltage with large van cargo box (12-16m³) ,we install two HIGHLY electric compressor into the condenser with big cooling capacity ,to ensure fresh and freezer from -20℃ to +18℃.

Kingclima as the best transport refrigeration units supplier in China can supply DC powered 12 volt refrigeration units for vans (or 24 volt). And Kingthermo small vans with refrigeration units are very popular with inner city transportation for fresh fruits, vegetables, meat, and dairy products delivery.
◆ Driven by DC powered vehicle battery,save much fuel.
◆ Add CPR valve to protect compressors, suitable for the hot place.
◆ Realize that vehicle engine is off but cooling system is continuous.
◆ Adopt Eco-friendly refrigerant: R404a
◆ Hot gas defrosting system: Auto and manual for choices
◆ Worldwide famous key parts: Sanden compressor, Danfoss Valve, Good Year, Spal fans; Codan, etc.
◆ Compressor is in the inner side of condenser, helps save installation space and easy to install.

V-200 Van Engine driven Refrigeration units are Rooftop mounting and used for 3-7 m³ van cargo box with chiller and freezing function. To ensure transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products and seafood…

B-260 is battery driven van refrigeration units and designed for 4-7m³ van cargo box from -18℃ to +15℃, which can meet most of demands of perishable cargoes delivery. It adopts 1 set of Highly electric compressors to have a better cooling performance.

V-300 is a top-mounted fuel-driven van chiller and freezer unit, which can be used in a van with a size of 10-15 cubic meters. The Sanden 5S14 compressor we use has a better cooling effect. All our refrigeration units are equipped with standard heating function and can be used in cold regions such as Russia

Driven by vehicle engine, V-300C chiller unit apply for 8 -16 m³ van container box, to reach the temperature above 0℃. The van reefer unis with chiller function for transporting fresh fruits.

V-350 small van units are rooftop mounting, driven by vehicle engine and apply for 6-9 m³ van container box.
It is Ultra-thin unit, the height is only 12 cm, suitable for vans with limited height.

The v-350 refrigeration unit is an ultra-thin unit specially designed for our customers. This unit has a height of only 12 cm and is suitable for height-limited vehicles.

KingClima V-200 Van Refrigeration Units are rooftop mounting, driven by vehicle engine and apply for 6 -17 m³ van container box.

B-100 is for last 1km frozen express to store, it use DC 12V 24V voltage to install electric tricycles.

KingClima V-300C Van Refrigeration Unit apply to small van or medium refrigerated cargo vans with 6-17m³ van body box.
Model : V-300C
Cooling Capacity : 3020W（0℃/32℉）
Application : 8 -16 m³
Compressor : SD5S14(138CC/r) /QP15

B-150 B-150C Battery Powered Refrigeration Units are rooftop mounting, DC-powered 12V/24V/48V/72V/96V used for 3-6m³ reefer vans.The Battery Powered Refrigeration Units meet your demands on energy-saving, noise control and provide even higher protection for vehicle generators to ensure the restart all the time to adjust to much-complicated city traffic conditions. Any needs just please contact us.

B-100 Tricycle Refrigeration Units
B-100 is for last 1km frozen express to store, it uses DC 12V 24V voltage to install electric tricycles.
Model : B-100
Application : Tricycle
Power Consumption : 300～800W
Dimension (mm) : 700×600×215

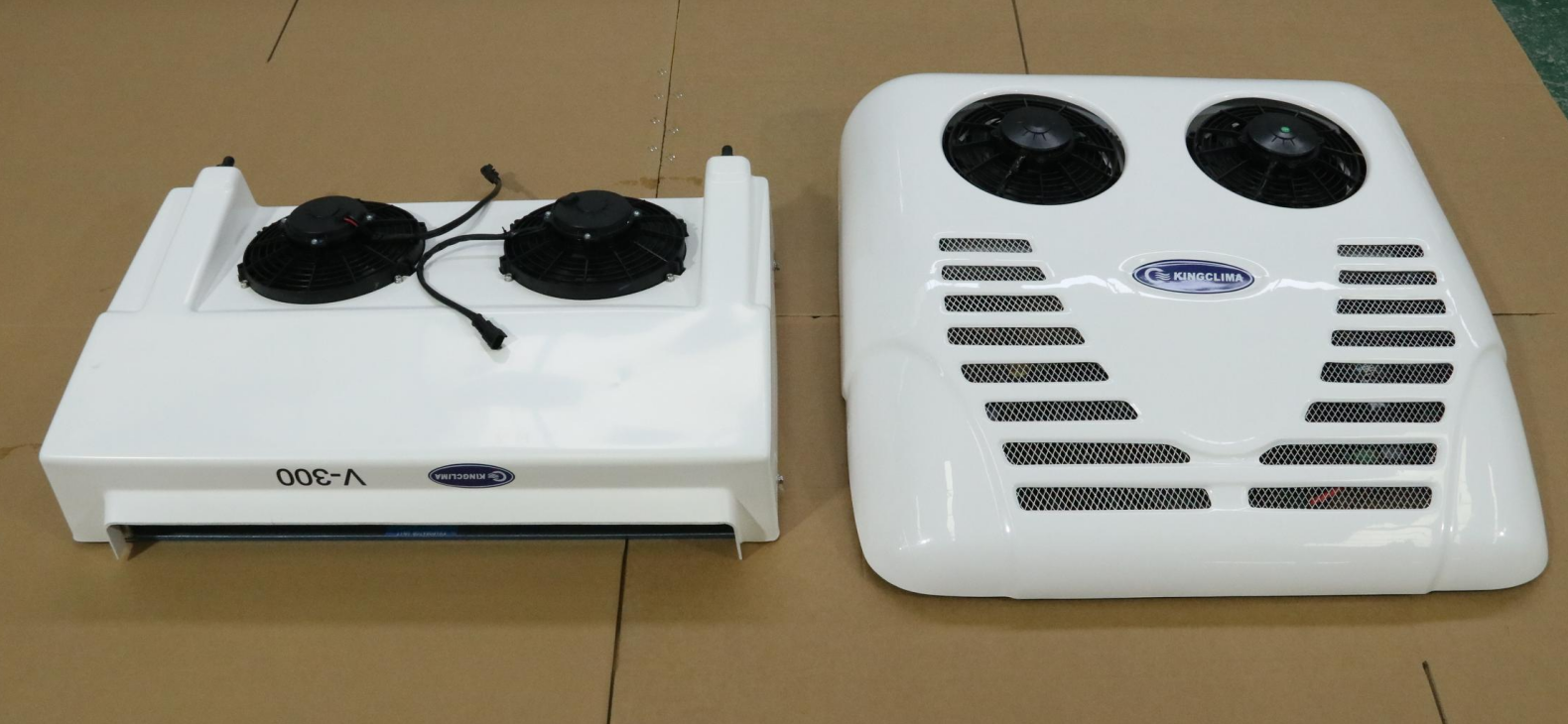

V-300 Van Refrigeration Units
V-300 van freezer units apply to small van and medium refrigerated cargo vans with 6-17m³ van body box.
Model : V-300
Cooling Capacity : 3005W
Application : 15m³
Compressor : DY5H14 / 138cc/r

V-300 reefer units are driven by fuel van engine and used for 10-16 m³ van cargo box with chiller and freezing function from -20℃ to +15℃. The voltage of V-300 is 12V/24V ,it is most popular used for transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products ,medical products

It is only 120mm height of the van refrigeration units, -18℃ ~ +25℃ temperature controlled, ultral slim type for most of cargo vans with 6-9m³ van box.

Customer Feedback of KingClima Zero Emission Refrigeration Units For Vans. KingClima B-150/B-150C Electric Transport Refrigeration Units are rooftop mounting, DC-powered 12V/24V/48V/72V/96V used for 3-6m³ reefer vans. Any needs just please contact us.

It is used for all kinds of van, and it is full electric, the electric compressor is inside of the condenser, it only has evaporator and condenser, so it is easy to install the whole set unit.

V-350 is ultrathin van refrigeration systems, this small van reefer units are rooftop mounting, driven by vehicle engine and apply for 6-9 m³ van container box. The most main feature of V-350 van refrigeration units is its very thin height only with 120mm height, which can meet all of the city height limitation.

V-300C Van chiller units are driven by fuel van engine and used for 10-16 m³ van cargo box with chiller and freezing function from -5℃ to +15℃. The voltage of V-300 is 12V/24V ,it is most popular used for transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products ,medical products

V-200 refrigeration units use 5S11 compressor, cooling capacity is about 2000W, the temperature can reach -20℃, it used for small van, and easy install, we also rovide AC110V/220V backup function.

Zero Emission Refrigeration Units
B-260 Full Electric Van Refrigeration Units
B-260 is designed for 4-7m³ van box for the lowest temperature controlled at -18℃, which can meet most of demands of perishable cargoes delivery. It adopts 1 set of Highly electric compressors to have a better cooling performance.
Model: B-260
Voltage: DC48V
Compressor Brand: Highly Compressor, VDD145S
Refrigerant: R404a
