KingClima* Bus Air Conditioner System

Driven Type : Engine Direct Driven
Cooling Capacity : 22KW-54KW
Compressor : Valeo, Bitzer, Bock
Refrigerant : R134a
Application : 7-18m transit buses

We're here to help: Easy ways to get the answers you need.

Traditional Bus Air Conditioner

HOT PRODUCTS

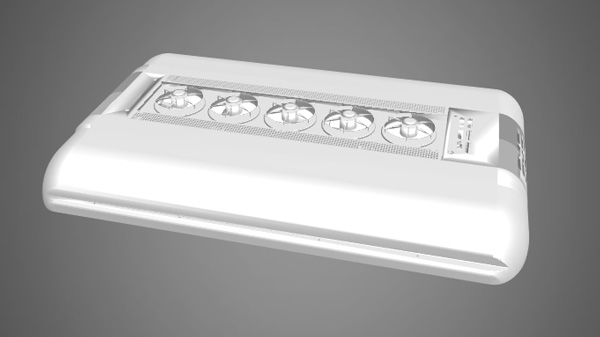

KingClima Double Return Air Systems Bus Roof ac Unit Introduction :

King Clima is professional in bus HVAC solutions for over 20 years and always devoted to the customers’ demands on customized bus transit air conditioning system. Of which, with the bus factory development, King Clima series bus air conditioner is designed for hybrid bus, CNG or LNG bus, which is very small in size and light in weight to take up less space so that it is easy to install.

King Clima series motor coach air conditioning adopts double return air system, which highly increase the cooling efficiency to provide a safe and pleasant environment for the bus drivers and passengers. Usually, KingClima series are good choice for the intercity buses, charter buses, party buses, airport buses and school buses with 6-12 meter length.

king clima bus air conditioners double return air system

KingClima series Coach Air Conditioning Features :

  • Double return air system, high cooling efficiency .

  • Cooling capacity is from 22KW to 54KW according to different size of buses.

  • Small in size and very beautiful in hybrid bus, CNG or LNG bus.

  • Famous brands of bus air conditioner parts, such as BOCK, Bitzer and Valeo.

  • No diesel noise, give passengers a pleasant time.

  • Customizable to meet different demands on bus HVAC solutions.

  • 20, 0000 km journey guarantee

  • Spare parts free change in 2 years

  • Full after sale service with 7*24h online help.

king clima bus air conditioners double return air system

Technical Data

KingClima Series

KingClima 250

KingClima 300

KingClima 320

KingClima 360

KingClima 400

KingClima 450

KingClima 500

KingClima 540

Cooling Capacity(W)

25000

30000

32000

36000

40000

45000

50000

54000

Heating Capacity(W)

25520

25520

27840

32480

37120

Optional

Optional

62640

Compressor

Valeo TM31

Bock470K

Bock 560K

Bock 560K

Bock 655K

Bock 775K

Bock 775K

Bock 830K

Evaporator Air Flow(m³/h)

4000

4000

4000

6000

8000

8000

8000

12000

Condenser Air Flow(m³/h)

5700

5700

5700

7600

9500

9500

11400

15200

Fresh Air Flow(m³/h)

1000

1000

1000

1000

1500

1500

2000

1750

Condenser fans

3

3

3

4

5

5

4*2

4*2

Evaporator blowers

4

4

4

6

8

8

8

12

Max.Operating Temp. ℃

50

50

50

50

50

50

50

50

L x W X H (mm)

2360*1920*265

2610*1920*165 2860*1920*265

2 sets of 2610*1920*265

Weight (kg)

161 kg

161 kg

161 kg

191 kg

207 kg

207 kg

2* 161 kg

2*191 kg

Bus Application

7-9m

7-9m

8-9.5m

9-11.5m

10-13m

10-13m

18m Articulated Buses
