As for some special vehicles, especially for the construction machinery,which need to work in the severe environment outside have a carving desire to a comfortable working time.
To meet the cooling demands and solve the heavy equipment trucks or construction machinery comfortable solutions, King Clima KK-40 and KK-50 air conditioning kits for trucks and King Clima AirTronic, Hydronic and Airpro series heating solutions. Here in this we introduce cooling solutions for summer.

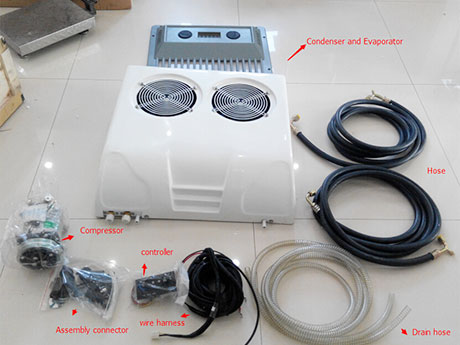

KK-40 model is direct engine driven commercial truck air conditioning, 4KW cooling capacity, integrated roof top mounted, best solutions for the construction machinery and other special vehicles.
★ 4KW cooling capacity, integrated roof top mounted, vehicle engine direct driven, fuel saving compared with other brands in same specification.
★ Anti-vibration, can be suitable for the severe environment.
★ Reliable, comfortable and customized.
★ Large cooling capacity, fast cooling speed, comfortable in minutes.
Model |
KK-40 |
KK-50 |
||
Cooling Capacity |
4000W |
5000W |
||
Voltage |
DC12V/24V |
|||
Driven Type |
Vehicle Engine Driven |
|||
Condenser |
Type |
Copper Pipe and Aluminum Foil Fin |
||
Fan Qty |
2 |
|||
Air Flow Volume |
680m³/h |
680m³/h |
||
Evaporator |
Type |
Copper Pipe and Aluminum Foil Fin |
||
Blower Qty |
1 |
1 |
||
Air Flow Volume |
850m³/h |
850m³/h |
||
Evaporator Blower |
Double Axle and Centrifugal Flow |
|||
Condenser Fan |
Axial Flow |
|||
Compressor |
5H14, 138cc/r |
5H14, 138cc/r |
||
Refrigerant |
R134a, 0.9KG |
R134a, 1.1KG |
||
Mounting Type |
Integrated and roof top mounted |
|||
Dimensions (mm) |
Evaporator |
730*695*180 |
755*745*190 |
|
Condenser |
||||
Application Vehicles |
Truck cabins, Engineering vehicles, construction machinery and agricultural vehicles. |
